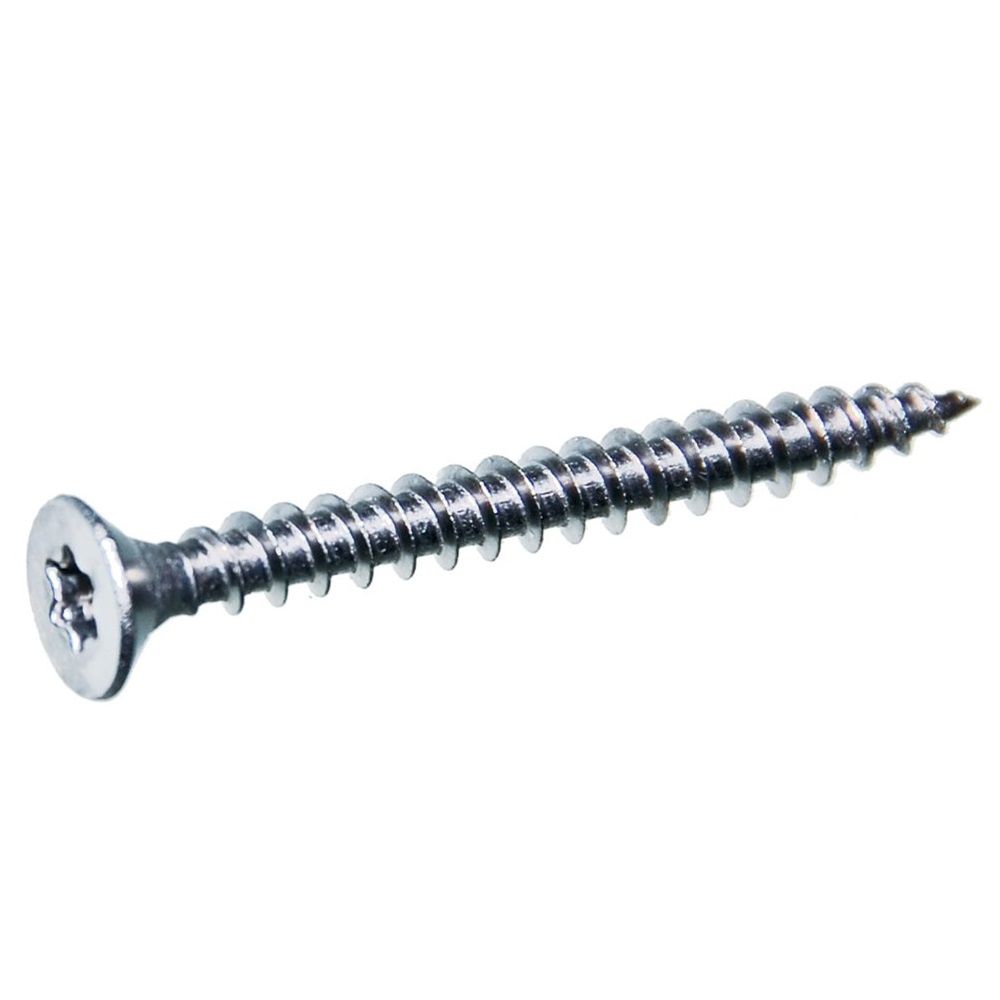

Chipboard screws 5.0 x 40 full thread

Description

Strong 5.0 x 40 mm Wood Screws for Sheet Material and Direct Fixing

These 5.0 × 40 mm full thread chipboard screws are designed for applications where even grip along the entire screw length is required. They are suitable for use in solid wood, plywood, MDF, OSB and chipboard.

The Torx TX25 drive ensures optimal grip and efficient power transfer during installation. This prevents cam-out and allows the screw to be driven in smoothly and in a controlled way, even at this 40 mm length.

The countersunk head sits neatly flush with the wood surface, providing a clean finish for both visible work and installation.

Thanks to the combination of a 5.0 mm diameter and 40 mm length, these screws are ideal for direct fixing in wood and sheet material without strong clamping action.

Why choose these chipboard screws?

✔ Ideal for 15–20 mm thick materials
✔ Full thread — even grip along the entire length
✔ 5.0 mm diameter — strong and stable fastening
✔ Torx TX25 — optimal grip and reduced slipping
✔ Suitable for sheet material and direct installation
✔ Pack of 200 pieces

When do you use 5.0 x 40 mm full thread screws?

A 5.0 × 40 mm full thread chipboard screw is used when materials need to be fixed without clamping them together.

Typical applications:

• Fixing MDF, plywood and chipboard
• Mounting hinges, fittings and components onto wood
• Attaching sheet material to wooden substructures
• Use with wall plugs in masonry or concrete
• Situations where even load distribution is important

Full thread screws provide grip along the entire length, making them ideal for mounting onto surfaces and sheet materials.

What is the difference between full thread and partial thread?

With full thread screws, the thread runs along the entire screw length.

This results in:

✔ Even grip across the full screw
✔ Less clamping force (parts are not pulled together)
✔ Ideal for sheet material and mounting onto a surface

For wood-to-wood connections where parts must be tightly pulled together, it is better to choose:

• 5.0 x 40 mm partial thread chipboard screws
• Or longer full thread variants such as 5.0 x 50 mm or 5.0 x 60 mm

Why is 40 mm a logical length?

For materials around 15–18 mm thick, 40 mm is an ideal length.

The screw:

✔ Provides sufficient penetration into the base material
✔ Prevents drilling through the material
✔ Ensures a stable and clean fixation

What makes these 5.0 x 40 mm screws suitable for MDF, plywood and wood?

When working with sheet materials, it is important that:

✔ The screw provides consistent grip
✔ The material does not deform
✔ The fixing remains stable

Thanks to the full thread, the screw grips along the entire length, ensuring a stable and evenly distributed fixation.

The 5.0 mm diameter also offers a good balance between strength and ease of use.

Installation and mounting advice

For best results:

• Use a Torx TX25 bit
• Pre-drilling is usually not required in softwood
• In hardwood, pre-drilling is recommended
• Drive the screw in with control

Why order these screws from EnergyBy?

✔ Directly available from stock
✔ Competitive pricing per pack
✔ Clear product specifications per size
✔ Fast delivery
✔ Combine with Torx bits and mounting materials

Not sure between full thread and partial thread?

• Choose full thread → for fixing onto a surface
• Choose partial thread → for wood-to-wood connections

Also check:

• 5.0 x 40 mm chipboard screws partial thread
• 5.0 x 35 mm chipboard screws full thread
• 5.0 x 50 mm chipboard screws full thread
