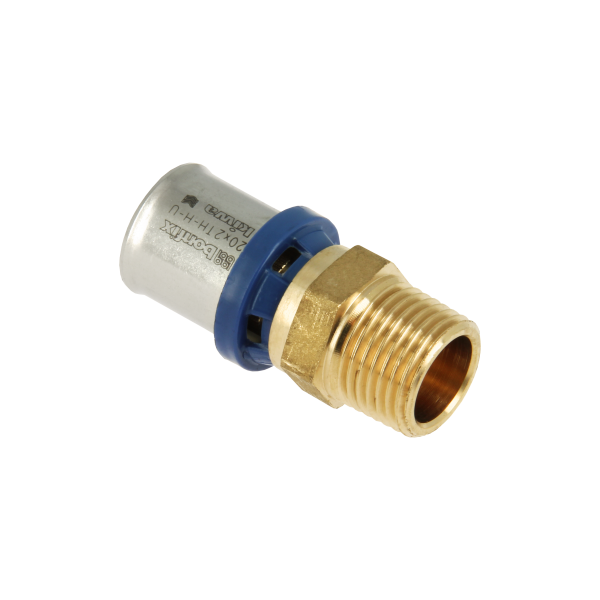

Bonfix Alu-pers brass press fitting male adapter 20mm x 3/4" FR
Artikelnummer:2000245
|EAN:8717845019266
Customer reviews
Based on real customer reviews
Free shipping in the Netherlands from €100
Not applicable to pallet shipments
Large stock available
Most products available for immediate delivery
Fast shipping
Ordered before 3:00 PM, usually shipped the same day
14-day return period
Easy returns without hassle
Secure payment
iDEAL, Wero, pay afterwards or bank transfer
Description
Suitable for heating installations, drinking water pipes, (dry) compressed air and cooling water.
Characteristics:
- Connection: male adapter FR (press x external thread)
- Diameter: 20mm x 3/4inch external thread
- Provided with KIWA approval
This press fitting is suitable for multiple applications with a working pressure of up to 10 bar and a maximum temperature on the fitting of 0° to +90°C. The Bonfix press coupling is suitable for use with multilayer pipes. The fittings can be closed with the following profile jaws: TH - H - U - B - F and CH.
Technische specificaties
| Article number | 2000245 |
| EAN nummer | 8717845019266 |
| Mpn | 2000245 |
| Verzendmethode | Pakket |
| Pack | 1 |
| Brand | Bonfix |
| Model | male adapter |
| Connection | Press x external thread |
| Number of connections | 2 |
| Connection diameter | 20x3/4" |
| Pipe size | 20x2.0 mm |
| Thread type | BSP (G-thread) |
| Thread size | 3/4" |
| Fitting material | Brass |
| Press sleeve material | Stainless steel |
| Sealing material | EPDM O-ring |
| Max operating temperature | -20°C to +90°C |
| Peak temperature | 120 °C |
| Max operating pressure | 10 bar |
| Certification | dvgw kiwa |
| Press profile | TH H U B F CH |
| Application | Heating Tap water cooling Oil-free compressed air floor heating |
| Collecties 2 | Alu-press fittings |
| Material | Brass |
| Nominal diameter | 20 mm |
| Thread connection | External thread |
| Suitable for | Drinking water Compressed air Heating water Cooling water |
