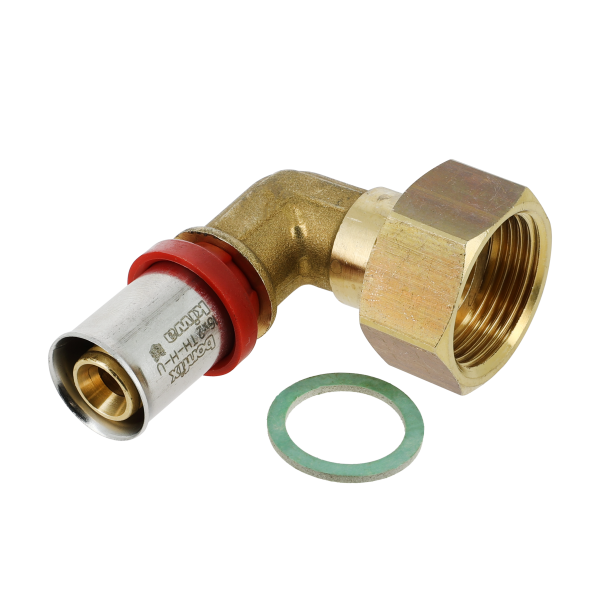

Bonfix Alu-press brass fitting coupling elbow 16mm x 1/2inch FRp
Customer reviews
Based on real customer reviews
Free shipping in the Netherlands from €100
Not applicable to pallet shipments
Large stock available
Most products available for immediate delivery
Fast shipping
Ordered before 3:00 PM, usually shipped the same day
14-day return period
Easy returns without hassle
Secure payment
iDEAL, Wero, pay afterwards or bank transfer
Description
Suitable for heating installations, drinking water piping, (dry) compressed air and cooling water.
Characteristics:
- Type: elbow 90 degrees internal thread FRp (female x internal thread)
- Connection: 16mm x 3.0mm / 16mm x 1/2inch
- KIWA approved
Technische specificaties
| Article number | 2002101 |
| EAN nummer | 8717845210212 |
| Brand | Bonfix |
| Model | elbow to union coupling |
| Connection | Press x internal thread |
| Number of connections | 2 |
| Connection diameter | 16x1/2" |
| Pipe size | 16x2.0 mm |
| Thread type | BSP (G-thread) |
| Thread size | 1/2" |
| Fitting material | Brass |
| Press sleeve material | Stainless steel |
| Sealing material | EPDM O-ring |
| Max operating temperature | -20°C to +90°C |
| Peak temperature | 120 °C |
| Max operating pressure | 10 bar |
| Certification | dvgw kiwa |
| Press profile | TH H U B F CH |
| Application | Heating Tap water cooling Oil-free compressed air |
| Collecties 2 | Alu-press fittings |
| Material | Brass |
| Diameter | 1/2inch 16mm |
| Suitable for | Drinking water Compressed air Heating water Cooling water |
