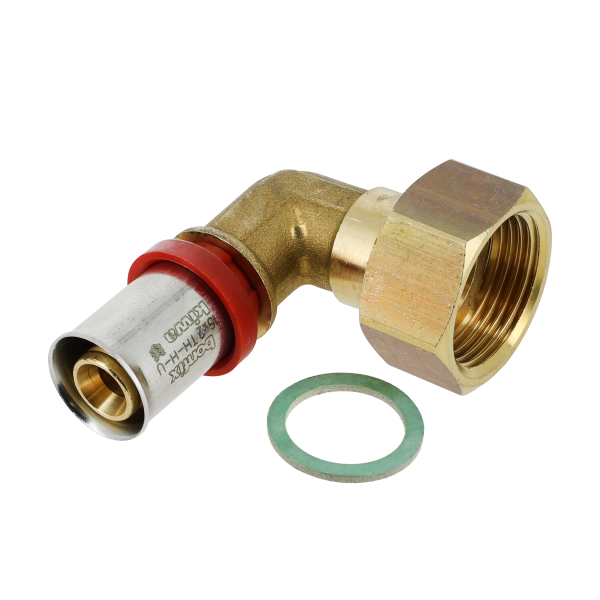

Bonfix Alu-press brass fitting coupling elbow 16mm x 3/4inch FRp
- Directly available from stock
- Pay as you wish
- 14 days reflection period
- Expert advice.
customers give us a 9.1 at WebwinkelKeur
Description
Suitable for heating installations, drinking water piping, (dry) compressed air and cooling water.
Characteristics:
- Type: elbow 90 degrees FRp (female x internal thread)
- Connection: 16mm x 3.0mm / 16mm x 3/4inch
- KIWA approved
Specifications
| Article number | 2002103 |
| EAN nummer | 8717845025021 |
| Brand | Bonfix |
| Model | elbow to union coupling |
| Connection | Press x internal thread |
| Number of connections | 2 |
| Connection diameter | 16x3/4" |
| Pipe size | 16x2.0 mm |
| Thread type | BSP (G-thread) |
| Thread size | 3/4" |
| Fitting material | Brass |
| Press sleeve material | Stainless steel |
| Sealing material | EPDM O-ring |
| Max. operating temperature | -20°C to +90°C |
| Peak temperature | 120 °C |
| Max. operating pressure | 10 bar |
| Certification | dvgw kiwa |
| Press profile | TH H U B F CH |
| Application | Heating Tap water cooling Oil-free compressed air |
| Collecties 2 | Alu-press fittings |
| Material | Brass |
| Brand | BONFIX |
| Diameter | 3/4inch 16mm |
| Suitable for | Drinking water Compressed air Heating water Cooling water |
