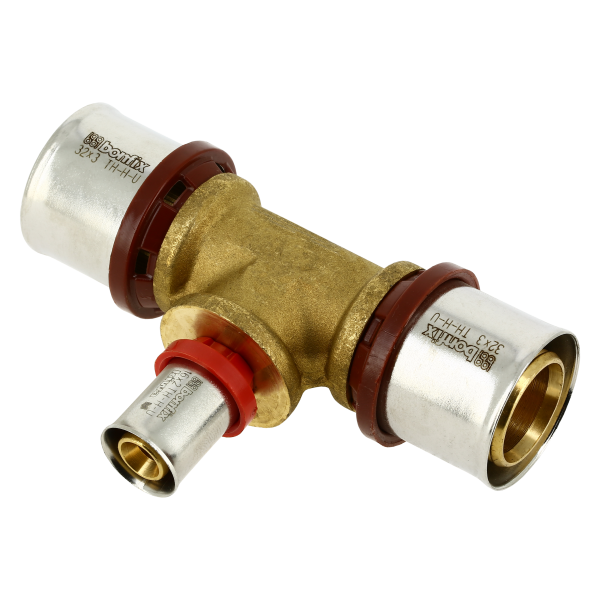

Bonfix Alu press brass fitting coupling Tee reduced 32mm x 16mm x 32mm FFF

Directly available from stock
Pay as you wish
14 days reflection period
Expert advice.
customers give us a 9.1 at WebwinkelKeur

Description

Suitable for heating systems, drinking water pipes, (dry) compressed air and cooling water.

Characteristics:

Type: Tee reduced FFF (female x female x female)
Connection: 32mm x 16mm x 32mm
KIWA approved

This press fitting is suitable for multiple applications with a working pressure of up to 10 bar and a maximum temperature on the fitting of 0° to +90°C. The Bonfix press coupling is suitable for use with multilayer pipes. The press coupling can be pressed with pressing pliers with TH – H – U – B – F and CH profile.

Specifications

Article number	2000878
EAN nummer	8717845020606
Brand	Bonfix
Model	Tee reduced
Connection	Press x press x press
Number of connections	3
Connection diameter	32x16x32 mm
Pipe size	16x2.0 mm 32x3.0 mm
Fitting material	Brass
Press sleeve material	Stainless steel
Sealing material	EPDM O-ring
Max. operating temperature	-20°C to +90°C
Peak temperature	120 °C
Max. operating pressure	10 bar
Certification	dvgw kiwa
Press profile	TH H U B F CH
Application	Heating Tap water cooling Oil-free compressed air
Collecties 2	Alu-press fittings
Material	Brass
Brand	BONFIX
Suitable for	Drinking water Compressed air Heating water Cooling water
