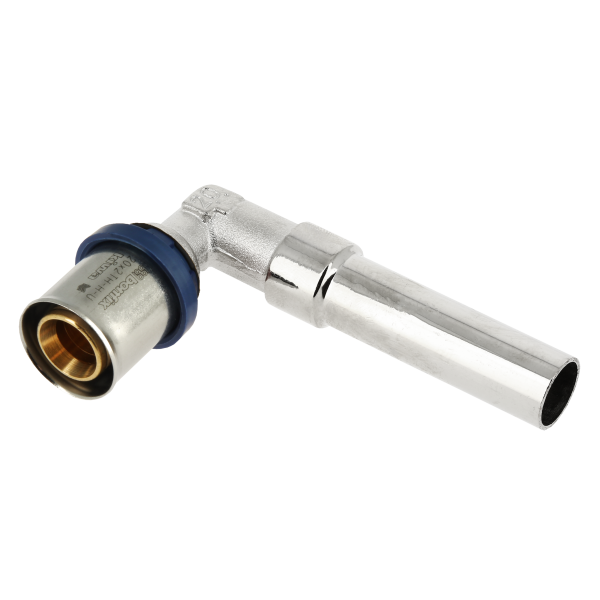

Bonfix Alu-press brass fitting elbow push-in 20mm x 22mm FM
Artikelnummer:2004610
|EAN:8717845046101
Customer reviews
Based on real customer reviews
Free shipping in the Netherlands from €100
Not applicable to pallet shipments
Large stock available
Most products available for immediate delivery
Fast shipping
Ordered before 3:00 PM, usually shipped the same day
14-day return period
Easy returns without hassle
Secure payment
iDEAL, Wero, pay afterwards or bank transfer
Description
Suitable for heating installations, drinking water pipes, (dry) compressed air and cooling water.
- Connection: push-in elbow 90 degrees FM (female x male)
- Diameter: 20mm x 22mm
- Provided with KIWA approval
This press fitting is suitable for multiple applications with a working pressure of up to 10 bar and a maximum temperature on the fitting of 0° to +90°C. The Bonfix press coupling is suitable for use with multilayer pipes. The press coupling can be pressed with a press jaw with TH – H – U – B – F and CH profile.
Technische specificaties
| Article number | 2004610 |
| EAN nummer | 8717845046101 |
| Mpn | 2004610 |
| Verzendmethode | Pakket |
| Pack | 1 |
| Brand | Bonfix |
| Model | elbow 90 degrees |
| Connection | Press x spigot |
| Number of connections | 2 |
| Connection diameter | 20x22 mm |
| Pipe size | 20x2.0 mm |
| Fitting material | Brass |
| Press sleeve material | Stainless steel |
| Sealing material | EPDM O-ring |
| Max operating temperature | -20°C to +90°C |
| Peak temperature | 120 °C |
| Max operating pressure | 10 bar |
| Certification | dvgw kiwa |
| Press profile | TH H U B F CH |
| Application | Heating Tap water cooling Oil-free compressed air floor heating |
| Collecties 2 | Alu-press fittings |
| Material | Brass |
| Nominal diameter | 20 mm 22 mm |
| Suitable for | Drinking water Compressed air Heating water Cooling water |
| Suitable for pipe | 22 mm |
Documenten en/of handleidingen
Download hieronder de informatie en/of handleidingen van dit product.
