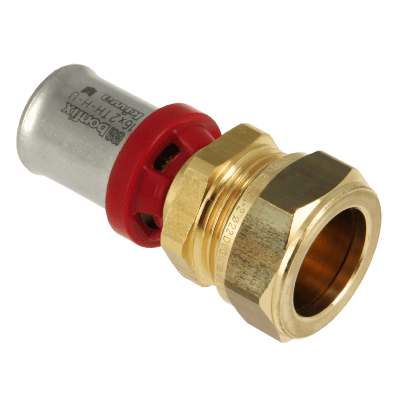

Bonfix Alu-press brass fitting reducer press to compression straight 16mm x 22mm FF
- Directly available from stock
- Pay as you wish
- 14 days reflection period
- Expert advice.
customers give us a 9.1 at WebwinkelKeur
Description
Suitable for heating installations, drinking water pipes, (dry) compressed air and cooling water.
Characteristics:
- Connection: straight reduced FF (female x female)
- Diameter: 16mm (press) x 22mm (compression)
- Provided with KIWA approval
This press fitting is suitable for multiple applications with working pressures up to 10bar and maximum temperatures on the fitting from 0°C to +90°C. The Bonfix press coupling is suitable for use with multilayer pipes. The press fitting can be pressed with pressing jaws with TH - H - U - B - F and CH profile.
Specifications
| Article number | 2004111 |
| EAN nummer | 8717845041113 |
| Brand | Bonfix |
| Model | Straight fitting adapter to compression fitting |
| Connection | Press x compression |
| Number of connections | 2 |
| Connection diameter | 16x22 mm |
| Pipe size | 16x2.0 mm |
| Fitting material | Brass |
| Press sleeve material | Stainless steel |
| Sealing material | EPDM O-ring |
| Max. operating temperature | -20°C to +90°C |
| Peak temperature | 120 °C |
| Max. operating pressure | 10 bar |
| Certification | dvgw kiwa |
| Press profile | TH H U B F CH |
| Application | Heating Tap water cooling Oil-free compressed air |
| Collecties 2 | Alu-press fittings |
| Material | Brass |
| Brand | BONFIX |
| Diameter | 22mm 16mm |
| Suitable for | Drinking water Compressed air Heating water Cooling water |
| Suitable for pipe | 12 mm |
