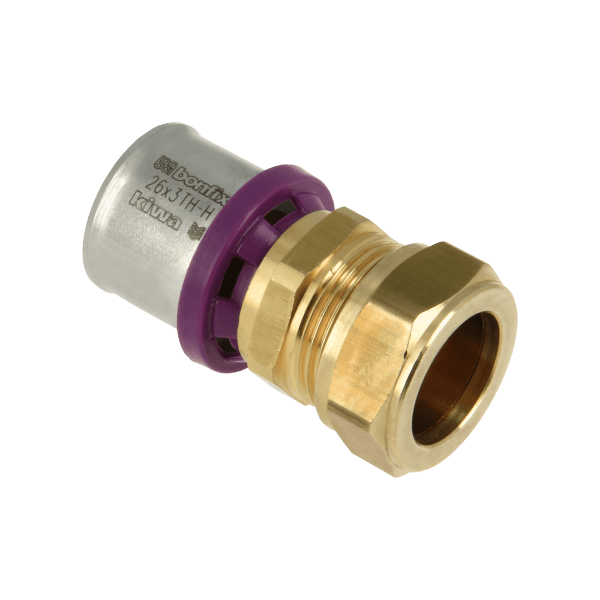

Bonfix Alu-press brass fitting reducer to compression straight 26mm x 22mm FF
Customer reviews
Based on real customer reviews
Free shipping in the Netherlands from €100
Not applicable to pallet shipments
Large stock available
Most products available for immediate delivery
Fast shipping
Ordered before 3:00 PM, usually shipped the same day
14-day return period
Easy returns without hassle
Secure payment
iDEAL, Wero, pay afterwards or bank transfer
Description
Suitable for heating installations, drinking water pipes, (dry) compressed air and cooling water.
Characteristics:
- Connection: straight reduced FF (female x female)
- Diameter: 26mm (press) x 22mm (compression)
- Provided with KIWA approval
This press fitting is suitable for multiple applications with working pressures up to 10bar and a maximum temperature on the fitting of 0° to +90°C. The Bonfix press coupling is suitable for use with multilayer pipes. The press coupling can be pressed with press pliers with TH - H - U - B - F and CH profile.
Technische specificaties
| Article number | 2004120 |
| EAN nummer | 8717845825416 |
| Brand | Bonfix |
| Model | Straight fitting adapter to compression fitting |
| Connection | Press x compression |
| Number of connections | 2 |
| Connection diameter | 26x22 mm |
| Pipe size | 26x3.0 mm |
| Fitting material | Brass |
| Press sleeve material | Stainless steel |
| Sealing material | EPDM O-ring |
| Max operating temperature | -20°C to +90°C |
| Peak temperature | 120 °C |
| Max operating pressure | 10 bar |
| Certification | dvgw kiwa |
| Press profile | TH H U B F CH |
| Application | Heating Tap water cooling Oil-free compressed air |
| Collecties 2 | Compression fittings Alu-compression fittings |
| Material | Brass |
| Diameter | 22mm 26mm |
| Suitable for | Drinking water Compressed air Heating water Cooling water |
| Suitable for pipe | 22 mm |
Documenten en/of handleidingen
Download hieronder de informatie en/of handleidingen van dit product.
