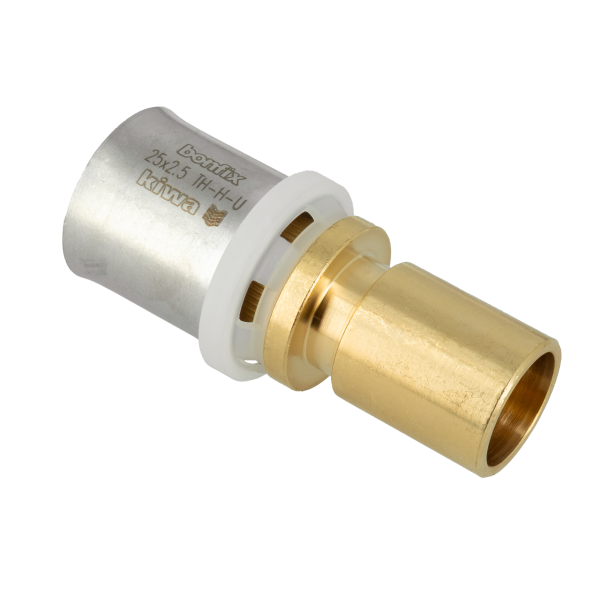

Bonfix Alu-press brass fitting reduction socket straight 25mm x 22mm MF
- Directly available from stock
- Pay as you wish
- 14 days reflection period
- Expert advice.
customers give us a 9.1 at WebwinkelKeur
Description
Suitable for heating installations, drinking water pipes, (dry) compressed air and cooling water.
Characteristics:
- Connection: reduction socket straight MF (male x female)
- Diameter: 25mm x 22mm
- Provided with KIWA approval
This press fitting is suitable for multiple applications with a working pressure of up to 10 bar and a maximum temperature on the fitting of 0° to +90°C. The Bonfix press coupling is suitable for use with multilayer pipes. The press coupling can be pressed with a press jaw with TH – H – U – B – F and CH profile.
Specifications
| Article number | 2004300 |
| EAN nummer | 8717845430009 |
| Brand | Bonfix |
| Model | Straight fitting adapter |
| Connection | Press x spigot |
| Connection diameter | 22x25 mm |
| Pipe size | 25x2.5 mm |
| Fitting material | Brass |
| Press sleeve material | Stainless steel |
| Sealing material | EPDM O-ring |
| Max. operating temperature | -20°C to +90°C |
| Peak temperature | 120 °C |
| Max. operating pressure | 10 bar |
| Certification | dvgw kiwa |
| Press profile | TH H U B F CH |
| Application | Heating Tap water cooling Oil-free compressed air |
| Collecties 2 | Alu-press fittings |
| Material | Brass |
| Nominal diameter | 25 mm 22 mm |
| Brand | BONFIX |
| Diameter | 22mm 25mm |
| Suitable for | Drinking water Compressed air Heating water Cooling water |
| Suitable for pipe | 22 mm |
