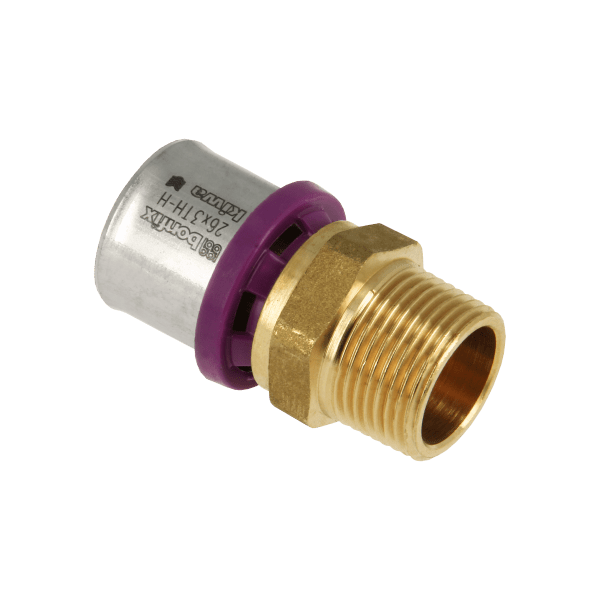

Bonfix Alu-press brass fitting straight 26mm x 1inch FR

Directly available from stock
Pay as you wish
14 days reflection period
Expert advice.
customers give us a 9.1 at WebwinkelKeur

Description

Suitable for heating systems, drinking water pipes, (dry) compressed air and cooling water.

Characteristics:

Type: straight coupling FR (female x external thread)
Connection: 26mm x 1inch
KIWA approved

This press fitting is suitable for multiple applications with a working pressure of up to 10 bar and a maximum temperature on the fitting of 0° to +90°C. The Bonfix press coupling is suitable for use with multilayer pipes. The press coupling can be pressed with pressing pliers with TH – H – U – B – F and CH profile.

Specifications

Article number	2000265
EAN nummer	8717845019310
Brand	Bonfix
Model	male adapter
Connection	Press x external thread
Number of connections	2
Connection diameter	26x1"
Pipe size	26x3.0 mm
Thread type	BSP (G-thread)
Thread size	1"
Fitting material	Brass
Press sleeve material	Stainless steel
Sealing material	EPDM O-ring
Max. operating temperature	-20°C to +90°C
Peak temperature	120 °C
Max. operating pressure	10 bar
Certification	dvgw kiwa
Press profile	TH H U B F CH
Application	Heating Tap water cooling Oil-free compressed air
Collecties 2	Alu-press fittings
Material	Brass
Suitable for	Drinking water Compressed air Heating water Cooling water
