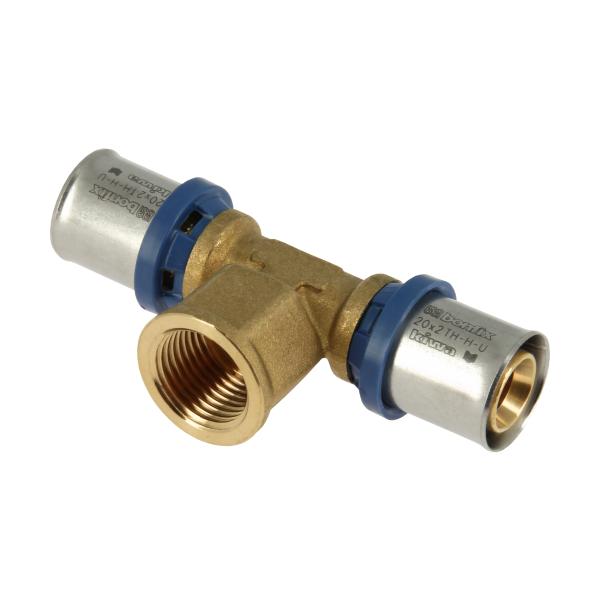

Bonfix Alu-press brass press fitting Tee 20 x 3/4inch x 20mm FRpF
- Directly available from stock
- Pay as you wish
- 14 days reflection period
- Expert advice.
customers give us a 9.1 at WebwinkelKeur
Description
Suitable for heating installations, drinking water pipes, (dry) compressed air and cooling water.
Characteristics:
- Connection: Tee FRpF (female x internal thread x female)
- Diameter: 20mm x 3/4inch x 20mm
- Provided with KIWA approval
This press fitting is suitable for multiple applications with a working pressure of up to 10 bar and a maximum temperature on the fitting of 0° to +90°C. The Bonfix press coupling is suitable for use with multilayer pipes. The press coupling can be pressed with a press jaw with TH – H – U – B – F and CH profile.
Bonfix press fittings are suitable for:
- Heating installations
- Drinking water pipes (with "Kiwa Water Brand")
- (Dry) compressed air
- Cooling water
Specifications
| Article number | 2000735 |
| EAN nummer | 8717845020040 |
| Brand | Bonfix |
| Model | Tee with internal thread |
| Connection | Press x internal thread x press |
| Number of connections | 3 |
| Connection diameter | 20x3/4"x20 |
| Pipe size | 20x2.0 mm |
| Thread type | BSP (G-thread) |
| Thread size | 3/4" |
| Fitting material | Brass |
| Press sleeve material | Stainless steel |
| Sealing material | EPDM O-ring |
| Max. operating temperature | -20°C to +90°C |
| Peak temperature | 120 °C |
| Max. operating pressure | 10 bar |
| Certification | dvgw kiwa |
| Press profile | TH H U B F CH |
| Application | Heating Tap water cooling Oil-free compressed air |
| Collecties 2 | Alu-press fittings |
| Material | Brass |
| Brand | BONFIX |
| Diameter | 3/4inch 20mm |
| Suitable for | Drinking water Compressed air Heating water Cooling water |
