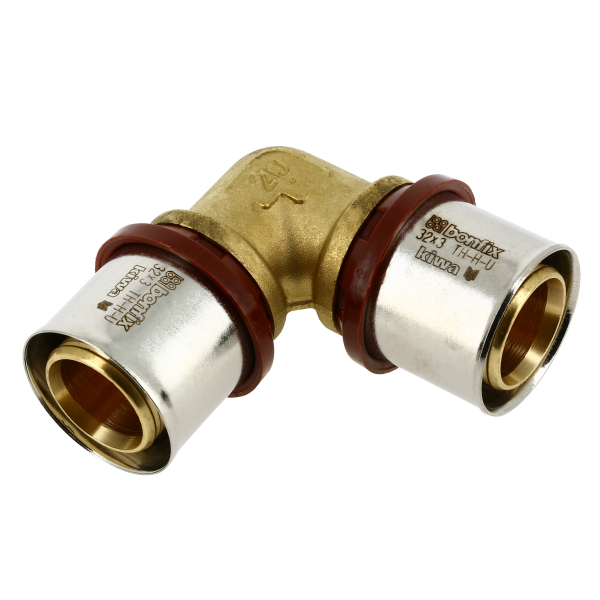

Bonfix Alu-Press Elbow Fitting 32 x 32 mm Brass (90° Press Fitting)

Bonfix Alu-Press Elbow Fitting 32 x 32 mm Brass (90° Press Fitting)
€ 17,80 incl. VAT
In stock
Free shipping from €75,- (excl. pallet transport)
  • Directly available from stock
  • Pay as you wish
  • 14 days reflection period
  • Expert advice.
  • customers give us a 9.1 at WebwinkelKeur

Description

What is this Bonfix Alu-Press elbow fitting 32 x 32 mm?

The Bonfix Alu-Press elbow fitting 32 x 32 mm is a brass press fitting (90° elbow) designed for connecting multilayer pipes (Alu-PEX) with an outer diameter of 32 mm. This press elbow allows you to create a precise 90-degree angle in piping systems without bending the pipe.

This elbow fitting is also referred to as a 90 degree press fitting for Alu-PEX or multilayer pipe systems, making it a commonly used solution in both residential and commercial installations.

This makes the fitting ideal for installations where a clean, reliable, and space-saving solution is required in drinking water, heating, and cooling systems.

The fitting is made of high-quality brass and features a stainless steel press sleeve with an EPDM seal. This ensures a durable, leak-free connection that can withstand high pressure and temperature.

This 32x32 mm press elbow fitting is commonly used in main distribution lines and larger heating systems with multiple connections.

Bonfix alu-press fittings are equipped with a Leak Before Pressed (LBP) function, meaning unpressed connections will leak during pressure testing. This allows installers to immediately detect missed connections before the system is put into operation.

Why choose an Alu-Press elbow fitting?

A press elbow (90° fitting) is used when pipes need to change direction at a right angle. Compared to bending, a press fitting offers:

  • a precise and clean 90° connection
  • reduced risk of pipe damage or kinking
  • fast and leak-free installation without soldering

The connection is made using a press tool, creating a permanent and reliable joint.

Features of the Alu-PEX system

The Alu-Press system combines multiple material properties:

  • flexibility of plastic (PEX)
  • stability of aluminum
  • corrosion resistance of brass

This makes alu-press couplings, elbows, and other fittings highly suitable for modern installations.

The fitting is suitable for multilayer pipe 32 × 2.0 mm and is an essential component in complete piping systems.

Applications

This Bonfix 32 mm elbow fitting is used in:

  • drinking water installations
  • central heating systems
  • underfloor heating systems
  • cooling installations
  • oil-free compressed air systems

Within these systems, the fitting is often combined with other alu-press fittings and couplings to build a complete piping system.

Advantages of this Bonfix press elbow 32 mm

  • precise 90° angle connection
  • fast installation with press tools
  • leak-free and durable connection
  • suitable for drinking water and heating
  • corrosion-resistant brass
  • compatible with multiple press profiles (TH, H and U)
  • long service life

Using press fittings significantly reduces the risk of installation errors.

Installation and assembly advice

For proper installation:

  1. Cut the multilayer pipe straight
  2. Calibrate and deburr the pipe
  3. Insert the pipe fully into the fitting
  4. Press using suitable press tools
  5. Visually check the connection

Always use a suitable multilayer pipe to ensure optimal and leak-free system performance.

Build a complete system

This press elbow is often combined with:

  • straight couplings
  • T-fittings
  • reducing couplings
  • wall plates
  • other elbows and fittings

View the full range here: alu-press fittings

Why buy from EnergyBy?

At EnergyBy you benefit from:

  • fast delivery from stock
  • competitive pricing for professionals and DIY users
  • reliable A-brands such as Bonfix
  • expert technical advice
Browse our full range of fittings for all models, sizes and applications.

Specifications

Article number2000930
EAN nummer8717845020910
Brand Bonfix
Model elbow 90 degrees
Connection Press x press
Number of connections 2
Connection diameter 32x32 mm
Pipe size 32x3.0 mm
Fitting material Brass
Press sleeve material Stainless steel
Sealing material EPDM O-ring
Max. operating temperature -20°C to +90°C
Peak temperature 120 °C
Max. operating pressure 10 bar
Certification dvgw
kiwa
Press profile TH
H
U
B
F
CH
Application Heating
Tap water
cooling
Oil-free compressed air
Collecties 2 Alu-press fittings
Suitable for Drinking water
Compressed air
Heating water
Cooling water

Frequently Asked Questions

An Alu-Press elbow fitting is a press fitting used to connect two multilayer pipes (Alu-PEX) at a 90-degree angle. The connection is created using a press tool, resulting in a permanent and leak-free joint. This system is widely used in drinking water, heating, and cooling installations due to its reliability and fast installation. Alu-press elbow fittings are commonly applied in both residential and commercial piping systems where durability and precision are required.
Bonfix Alu-Press elbow fittings are designed for multilayer pipes (Alu-PEX) with specific outer diameters such as 16 mm, 20 mm, 25 mm, 26 mm, 32 mm, 40 mm, 50 mm and 63 mm. It is essential that the fitting size exactly matches the pipe diameter to ensure a proper and leak-free connection. Always use a compatible Alu-pex pipe within the same system to avoid installation issues. Using the correct pipe size is crucial for long-term system performance.
“Leak Before Pressed” (LBP) is a safety feature that ensures a fitting will leak if it has not been pressed. This makes it immediately clear during pressure testing if any connections have been missed. As a result, installation errors can be detected and corrected before the system is put into operation. This significantly reduces the risk of leaks, water damage, and costly repairs.
Yes, installing an Alu-Press elbow fitting requires a suitable press tool that matches the system. In addition, a pipe cutter and calibration tool are needed to properly prepare the multilayer pipe. It is important to use compatible press profiles such as TH, H, or U to ensure a secure and durable connection. Using the correct tools guarantees a reliable and long-lasting installation.
A press fitting is permanently connected to the pipe using a press tool, while a compression fitting is tightened mechanically. Press fittings offer faster installation, lower risk of leaks, and are maintenance-free. Compression fittings may require periodic checks, whereas press systems are designed for long-term reliability.
Alu-Press elbow fittings are used in drinking water systems, central heating installations, underfloor heating, cooling systems, and utility projects. They are essential for creating directional changes in piping systems while maintaining a reliable connection. These fittings are widely used in both residential and commercial applications where efficiency and durability are required.
In some cases, multilayer pipes can be bent using a bending spring, but an elbow fitting often provides a more precise and secure solution. A press elbow ensures a clean 90-degree angle without the risk of kinking or damaging the pipe. This is especially important in fixed installations or visible piping where accuracy matters.
An elbow fitting is typically combined with straight couplings, T-fittings, reducers, and wall plates to create a complete piping system. By combining different fittings, you can build a flexible and efficient installation. View the full range of Alu-press fittings to find all compatible components for your system.
A 32 mm Alu-Press elbow fitting is typically used in main distribution lines and larger heating installations. This size is suitable for systems with multiple circuits, such as underfloor heating manifolds or central heating distribution. It ensures efficient flow and reliable performance in larger residential or light commercial setups. Use a compatible multilayer pipe 32 mm for best results.
