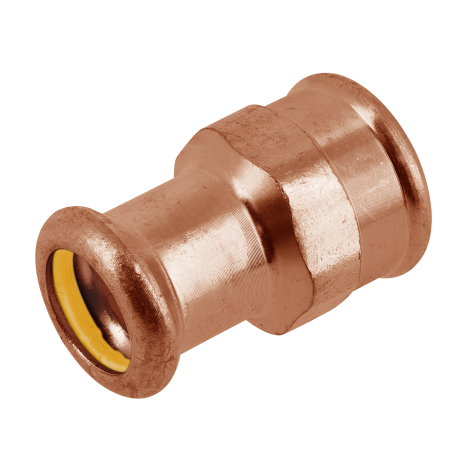

BONFIX press fitting red copper gas female adapter 1 1/4inch x 28mm FRp
customers give us a 9.1 at WebwinkelKeur- Expert advice.
- 14 days reflection period
- Pay as you wish
- Directly available from stock
Description
This press fitting is suitable for gas and hydrogen according to GASTEC QA KE 214 (approval requirement 214).
- Connection: female adapter FRp (internal thread x female)
- Diameter: 1 1/4inch x 28mm
- Max. working pressure: 16bar
- Equipped with GASTEC approval
BONFIX has a wide range of press fittings available from stock. This range consists of red copper material and is available in sizes from 12mm to 54mm. The red copper press fittings are high quality fittings for press connections in copper piping systems. The red copper press fittings for gas applications carry the GASTEC quality mark.
BONFIX Leak Before Pressed (LBP) feature
BONFIX red copper press fittings are supplied with “Leak Before Pressed” function using BONFIX pipes. Fittings with this feature have the advantage that as long as the connections are NOT pressed, they will leak gas during the mandatory pressure test. This means that a fitting that is incompletely pressed can be easily found. If the fittings are correctly assembled and pressed, then the press fittings are airtight!
The advantages of the BONFIX press fitting:
- Large and wide range
- Red copper from 12 to 54mm
- Quick and easy installation
- Safety assured with GASTEC quality mark
- No fire risk during installation
- Easy and fast pressing
- Superior quality
- Safe and reliable connections with a long service life
- High corrosion resistance
- Excellent value for money
- Sealing rings with leak detection: LBP (Leak Before Pressed)
- Each fitting 100% leak test
- Low flow resistance and noise level
- Beautiful design by even structure
Specifications
| Article number | 500855 |
| EAN nummer | 8717845055998 |
| Brand | BONFIX |
| Model | female adapter |
| Diameter | 28mm 1 1/4inch |
| Contour | M-profiel |
| Connection | FRp (female x internal thread) |
| Application | Gas gas boiler hydrogen butane propane LPG natural gas |
| Material | copper |
| Certification | gastec qa kiwa ata |
| Collecties 2 | copper pressfittings gas |
