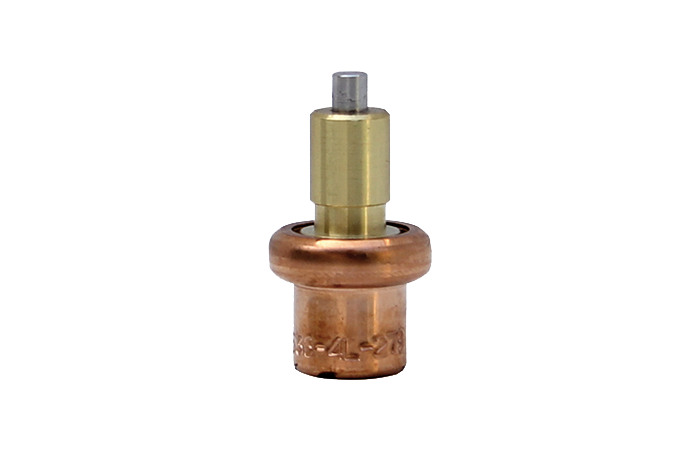

EnergyBy 60 degrees thermostatic element for anti condensation mixing valve EBLV14

This thermostatic element is suitable for the EBLV14 anti condensation mixing valve.

• Opening temperature: 60°C
• Max. working pressure: 10bar

The EnergyBy 3-way thermostatic anti condensation mixing valve is for installations with solid fuel boilers, such as biomass boilers and pellet boilers. This charging valve is intended to guarantee an optimum return temperature to the boiler (with or without buffer tank), which increases the efficiency of the system. Deposits and condensation are thus prevented, which extends the life of the boiler.

The valve regulates on two ports, which means that no balancing valve is required in the circuit between the boiler and the charging valve. The thermostatic element starts to open port A at an outgoing mixed water temperature in port AB of 55°C.

Port B is closed when the temperature in port A exceeds the nominal opening temperature by 10°C.

Thermostatic valves do not require an external power supply and are available in different opening temperatures (on order).
