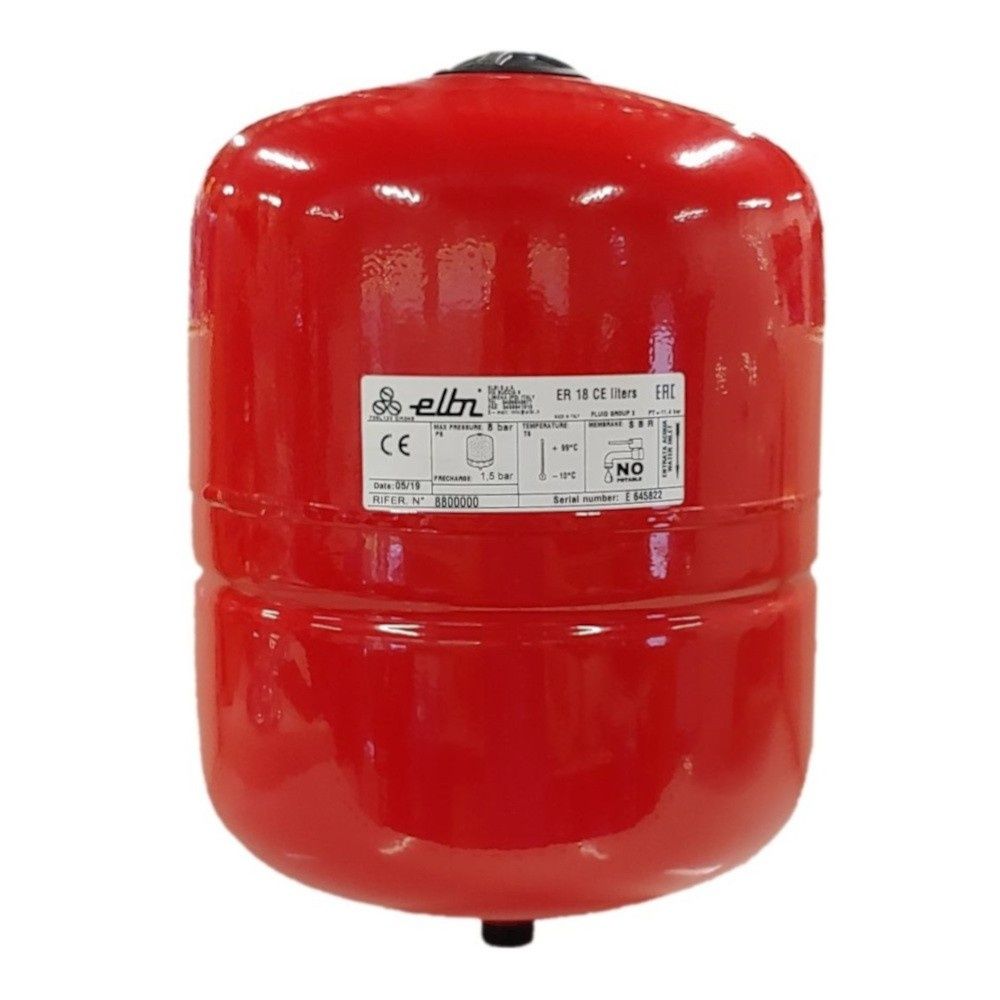

Expansion vessel 18 liter - 1.5 bar pre-pressure

Belangrijkste kenmerken:

18 liter inhoud
3/4inch aansluiting
Voor cv-installaties
1.5 bar voordruk

Customer reviews

Based on real customer reviews

Free shipping in the Netherlands from €100

Not applicable to pallet shipments

Large stock available

Most products available for immediate delivery

Fast shipping

Ordered before 3:00 PM, usually shipped the same day

14-day return period

Easy returns without hassle

Secure payment

iDEAL, Wero, pay afterwards or bank transfer

Description

18 liter diaphragm expansion vessel for solar systems. This high-quality 18 liter expansion vessel complies with European guidelines and has the CE European quality mark. Equipped with a fixed diaphragm in SBR rubber, which guarantees better performance and longer life.

Pre-pressure: 1.5bar
Connection: 3/4inch external thread
Temperature maximum 99 degrees
Equipped with durable epoxy powder coating

Technische specificaties

Article number	A102L24
EAN nummer	8019742011955
Brand	Elbi
Model	expansion vessel
Connection	R (external thread)

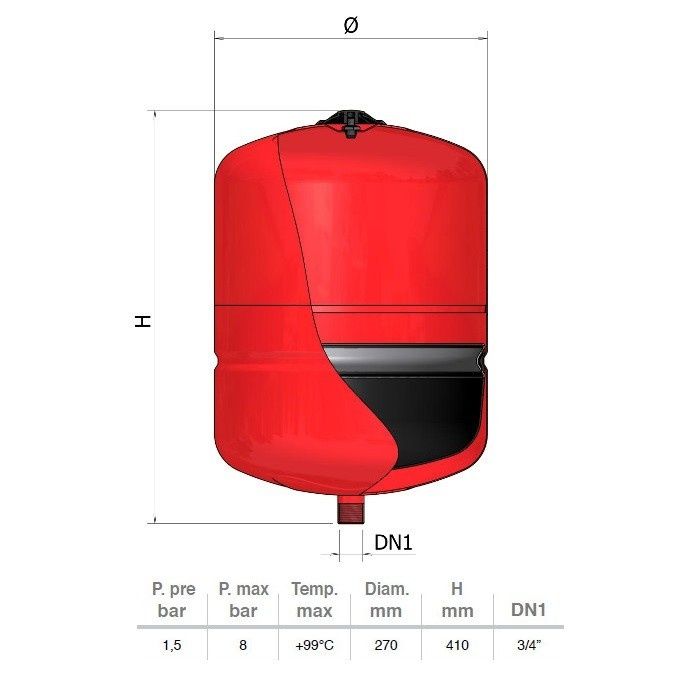

Diameter	270 mm
Thread type	BSP (G-thread)
Max operating temperature	-10°C tot +99°C
Max operating pressure	10 bar
Certification	ce
Application	Heating cooling
Collecties 2	Central heating expansion vessels
Height	395 mm
Pre charge pressure	1.5 bar
Volume	18 liter
Material	Steel SBR rubber
Nominal diameter	DN20
Color	Red
Finish	Epoxy-coated steel
