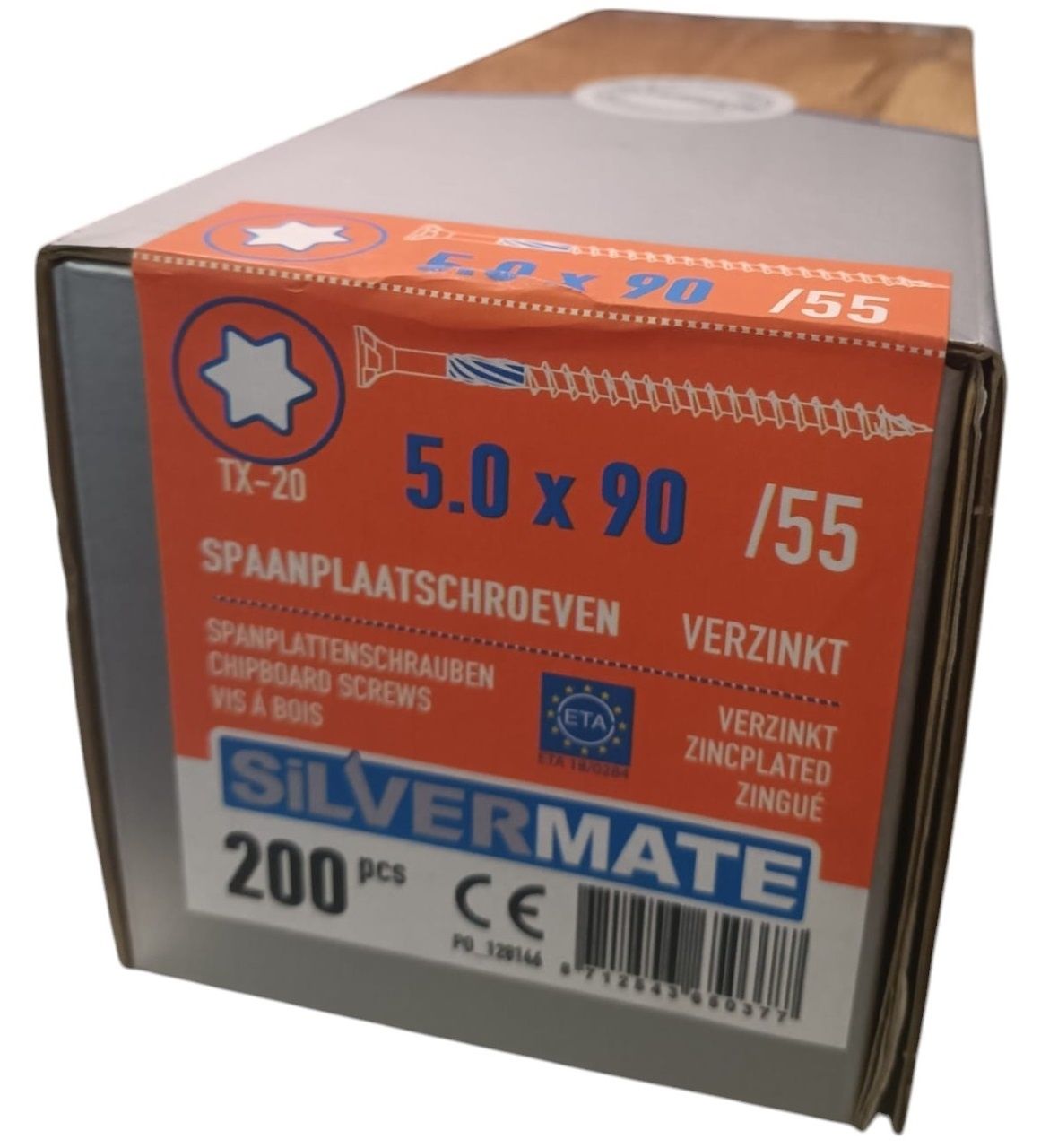

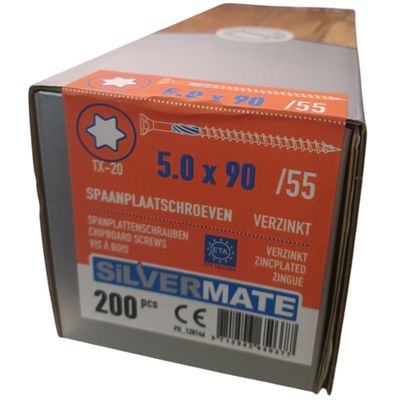

Silvermate chipboard screws 5.0 x 90 partial thread - 200 pcs

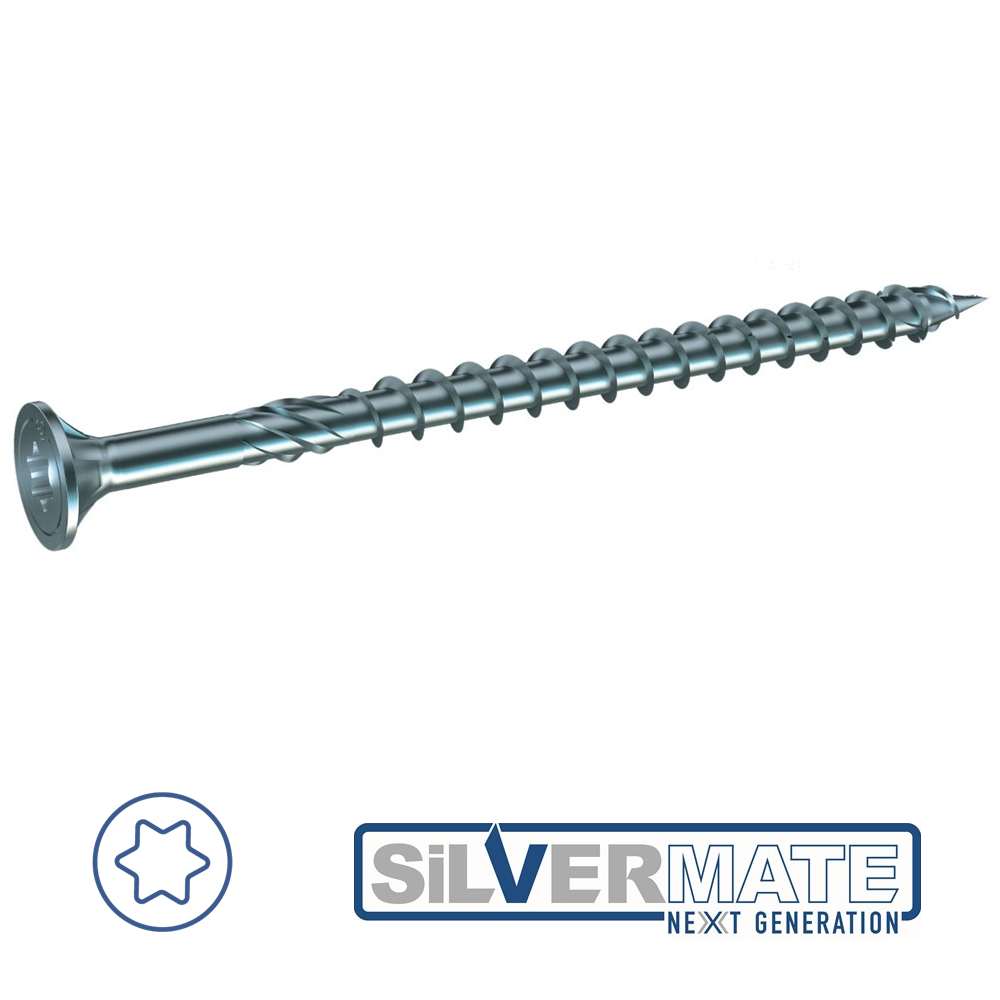

What is the SilverMate 5.0 x 90 mm chipboard screw?

The SilverMate 5.0 x 90 mm chipboard screw is designed for applications where wooden parts need to be securely fastened together. The combination of a 5 mm diameter and a 90 mm length provides an excellent balance between strength and anchoring depth.

This version features partial thread, allowing the upper wooden section to be pulled tightly against the lower section during installation, creating a firm and stable connection.

The Torx TX20 drive ensures excellent grip, efficient torque transfer and controlled installation, making this screw suitable for a wide variety of woodworking applications.

Does this SilverMate 5.0 x 90 mm screw suit your application?

What makes SilverMate chipboard screws strong in use?

SilverMate chipboard screws are designed for reliable fastening in wood. The combination of Torx drive, partial thread and zinc-plated finish makes this screw practical for many different woodworking applications.

For this version, this means the screw is suitable for controlled installation, excellent grip and strong wood-to-wood connections.

• Torx drive: provides excellent grip and efficient power transfer.
• Partial thread: pulls wooden parts tightly together.
• 5.0 mm diameter: suitable for strong wood connections.
• 90 mm length: provides reliable anchoring in timber.
• Zinc plated: finished with a protective zinc coating.

When do you use 5.0 x 90 mm screws?

A 5.0 x 90 mm screw is commonly used when strong wood-to-wood fastening is required. Thanks to its 90 mm length, it provides sufficient penetration into timber while creating a secure and stable connection.

Why choose a 90 mm screw? A wood screw should always penetrate deeply enough into the supporting timber to create a strong and durable connection with excellent clamping force.

Benefits of partial thread with 5.0 x 90 mm

With wood screws, partial thread is an important advantage. Because the upper part of the screw has no thread, the upper wooden part can be pulled freely against the lower wooden part.

This creates strong clamping between both wooden parts. This is especially important for wood-to-wood connections, battens, beams and solid wood constructions.

• wooden parts are actively pulled together
• good clamping force is created
• the upper wooden part stays tight against the lower part
• the connection becomes more stable and neatly finished

For many wood-to-wood connections, partial thread is more effective than full thread. Choosing the right thread type can improve clamping performance and overall connection strength.

Installation advice for SilverMate 5.0 x 90 mm

For the best installation results, always use the correct bit, suitable power tool and proper working method. Because of the 90 mm length, controlled installation is recommended, especially in hardwood or when fastening near the edge of timber.

• Always use a matching Torx TX20 bit.
• Use a powerful drill driver with sufficient torque.
• Pre-drilling is generally unnecessary in softwood.
• Pre-drilling is recommended in hardwood.
• Drive the screw steadily to prevent excessive wear on the screw, bit and timber.
• Avoid fastening too close to timber edges without pre-drilling to reduce the risk of splitting.

The Torx drive delivers excellent grip and efficient torque transfer. When working with hardwood, end grain or edge applications, pre-drilling often remains the preferred solution.

Not sure about the correct screw length?

Is 90 mm slightly too long or too short for your project? Consider other SilverMate screws within the same range. Different lengths provide more or less anchoring depth while maintaining the same reliable SilverMate quality.

Buy SilverMate 5.0 x 90 mm
