Solar expansion vessel DS-50 liter - 2.5 bar pre-pressure
View all from the category Solar expansion vessels
Customer reviews
Based on real customer reviews
Free shipping in the Netherlands from €100
Not applicable to pallet shipments
Large stock available
Most products available for immediate delivery
Fast shipping
Ordered before 3:00 PM, usually shipped the same day
14-day return period
Easy returns without hassle
Secure payment
iDEAL, Wero, pay afterwards or bank transfer
Description

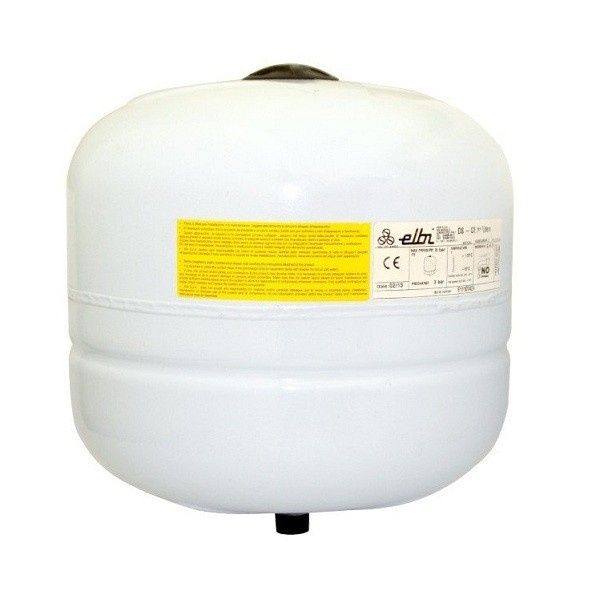

50 liter diaphragm expansion vessel for solar systems. Equipped with a fixed diaphragm in SBR rubber, which guarantee better performance and longer life.
- Pre-pressure: 2.5bar

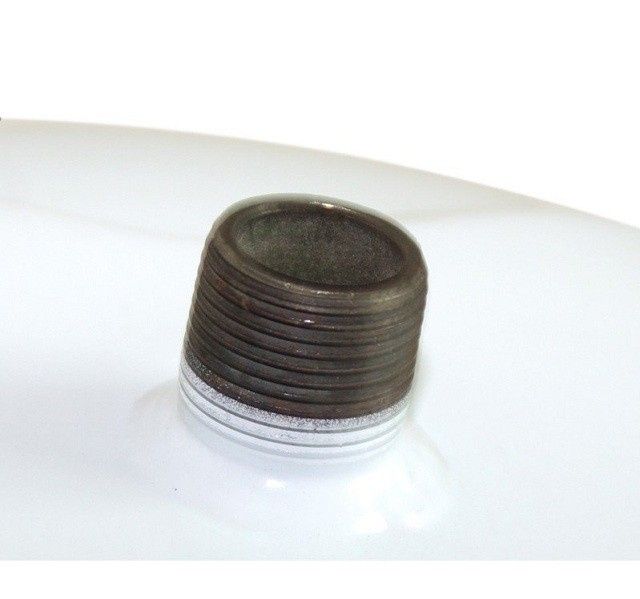

- Connection: 1inch external thread
This high-quality 50 liter expansion vessel complies with European directives and bears the CE European mark.
- Suitable for closed heating systems
- Temperature maximum 110 degrees
- Features durable epoxy powder coating
Technische specificaties
| Article number | A232L34 |
| EAN nummer | 8019742058295 |
| Brand | Elbi |
| Model | expansion vessel |
| Diameter | 400 mm |
| Thread type | BSP (G-thread) |
| Thread size | 1 inch |
| Max operating temperature | -10°C to +110°C |
| Max operating pressure | 10 bar |
| Certification | ce |
| Application | Solar Central heating systems |
| Collecties 2 | Solar expansion vessels |
| Height | 505 mm |
| Pre charge pressure | 2.5 bar |
| Volume | 50 liter |
| Material | Steel Butyl rubber membrane |
| Nominal diameter | DN25 |
| Color | White |
| Finish | Epoxy-coated steel |
| Thread connection | External thread |
