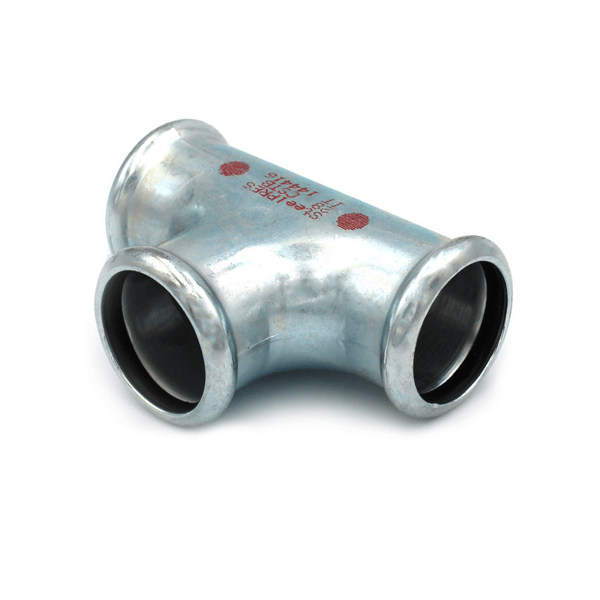

Steelpres carbon steel M press fitting Tee 54mm x 42mm x 54mm FFF
Artikelnummer:392054042
|EAN:8013181111474
Customer reviews
Based on real customer reviews
Free shipping in the Netherlands from €100
Not applicable to pallet shipments
Large stock available
Most products available for immediate delivery
Fast shipping
Ordered before 3:00 PM, usually shipped the same day
14-day return period
Easy returns without hassle
Secure payment
iDEAL, Wero, pay afterwards or bank transfer
Description
This press fitting is suitable for several applications, such as: cooling, oil-free compressed air, heating and solar (only with FKM O-ring).
- Connection: Tee FFF (female x female x female)
- Diameter: 54mm x 42mm x 54mm
- Max. working pressure: 16bar
The Steelpres press fitting has an M-profile press end and is made of C-steel or carbon steel. The black EPDM sealing ring of ø 15÷54mm is equipped with an extra safety feature that ensures any unintentional unpressed joint is visible during the pressure test and causes leakage. In addition, the EPDM sealing element is equipped with a patented sealing ring. This has the advantage that any uncompressed fitting can be detected during leak tests. The O-ring is made of EPDM and suitable for temperatures of -20° / +120°C.
Advantages Steelpres O-ring:
- A sealing surface of more than 20%
- The risk of damaging the seal ring is very small
- Simplified way of inserting the pipe
Technische specificaties
| Article number | 392054042 |
| EAN nummer | 8013181111474 |
| Mpn | 392054042 |
| Verzendmethode | Pakket |
| Pack | 1 |
| Brand | Steelpres |
| Model | Tee with internal thread |
| Connection | FFF (female x female x female) |
| Number of connections | 3 |
| Fitting material | C-steel (carbon steel) |
| Sealing material | EPDM O-ring |
| Peak temperature | 120 °C |
| Max operating pressure | 16 bar |
| Press profile | M-profiel |
| Application | Heating cooling Oil-free compressed air Solar (only with fkm o-ring) |
| Collecties 2 | Carbon steel press fittings |
| Material | C-steel (carbon steel) |
| Nominal diameter | 54 mm 42 mm |
